引言

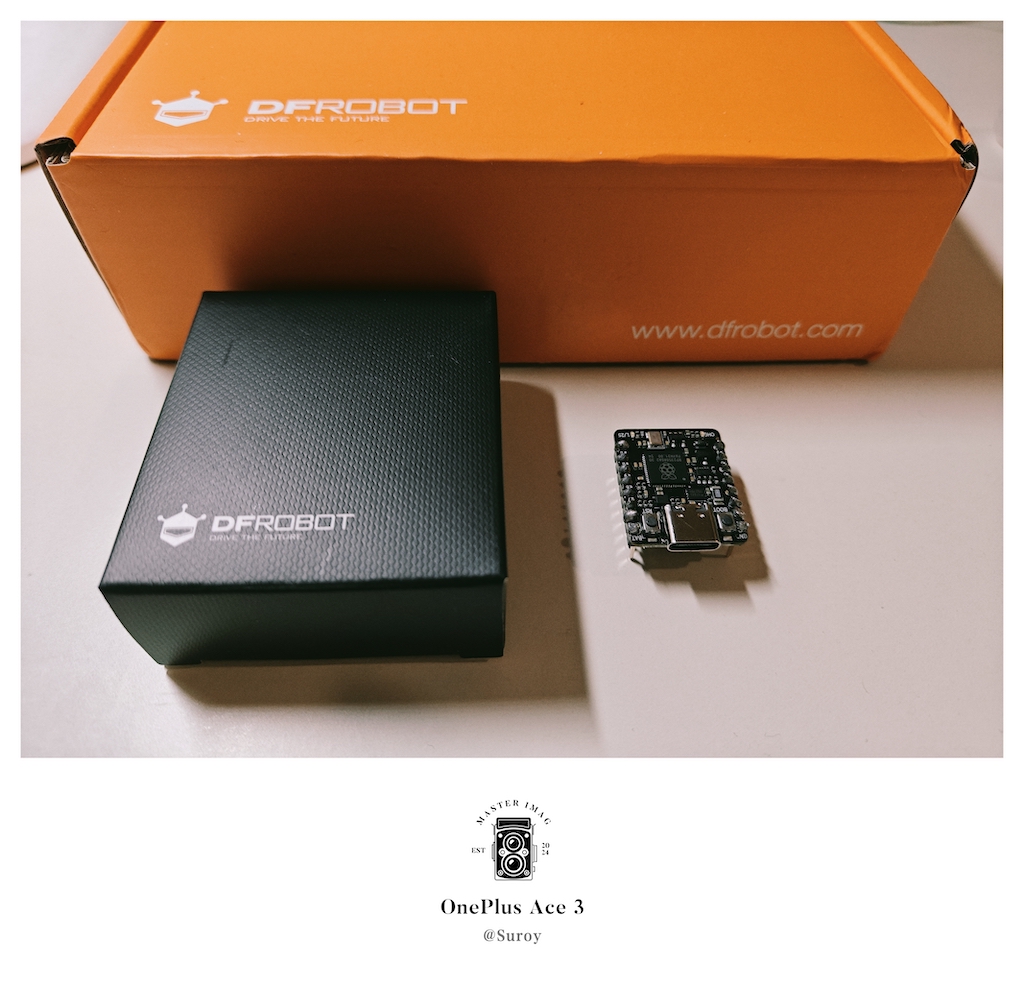

近期有幸体验了DFRobot推出的Beetle-RP2350微型开发板，这款仅硬币大小的开发板给我留下了深刻印象。作为一款基于树莓派RP2350微控制器的产品，它拥有以下核心特性：
- 双核双架构，Arm Cortex-M33或Hazard3 RISC-V内核
- 150MHz主频，520KB RAM，2MB flash。
浏览了一下社区中关于Arduino生态的内容较为丰富，但出于对MicroPython的偏好，我决定采用MicroPython作为开发环境。本文将介绍在MacOS系统下搭建开发环境的完整过程，并通过基准测试其性能表现。
前期准备
开发环境如下
- 系统: MacOS Catalina 10.15.7
- IDE: PyCharm Pro + MicroPython + Tabby(终端工具)
- 硬件: Beetle-RP2350
相关资料
- MicroPython 教程地址: https://docs.micropython.org/en/latest/rp2/quickref.html
环境搭建

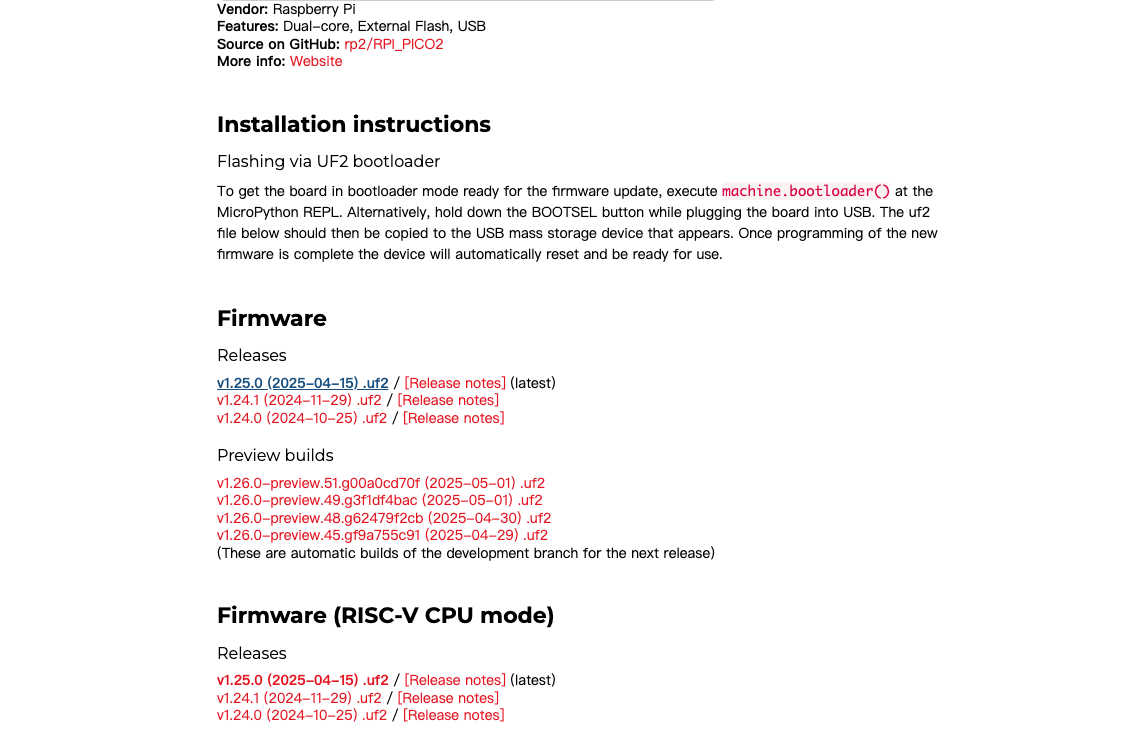

根据 MicroPython 官方文档指导，可以将RP2350连上USB进入大容量设备模式（类似于U盘），将下载好的固件( RPI_PICO2-20250415-v1.25.0.uf2)拷贝进去即烧录成功自动重启。
- 进入大容量模式：按住 BOOT 不放 + 点按 RST

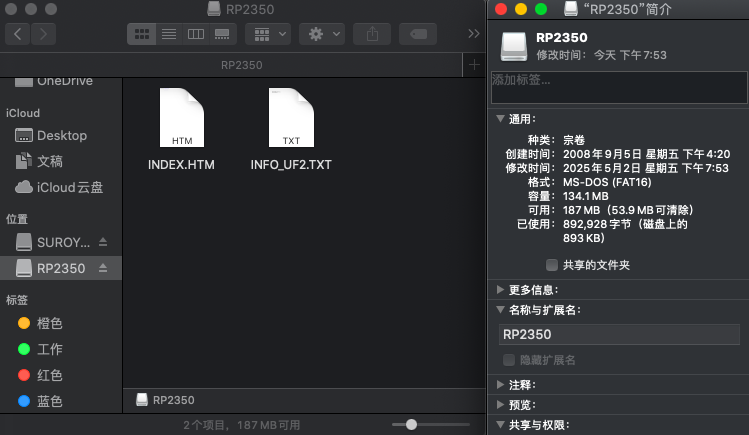

- 拖动拷贝固件到
RP2350盘符，完成之后会自动弹出该盘符 - 按下 RST 复位
上机测试

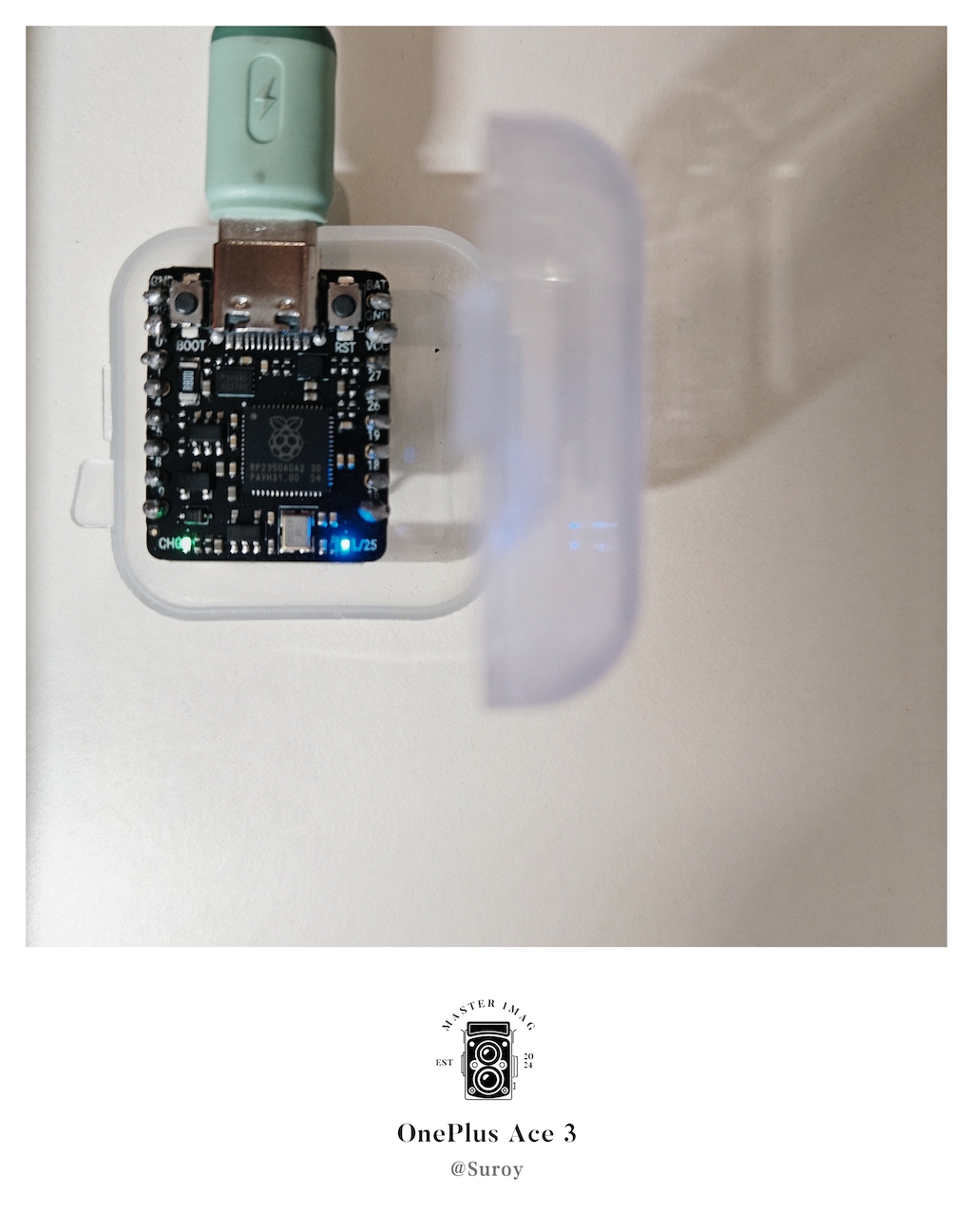

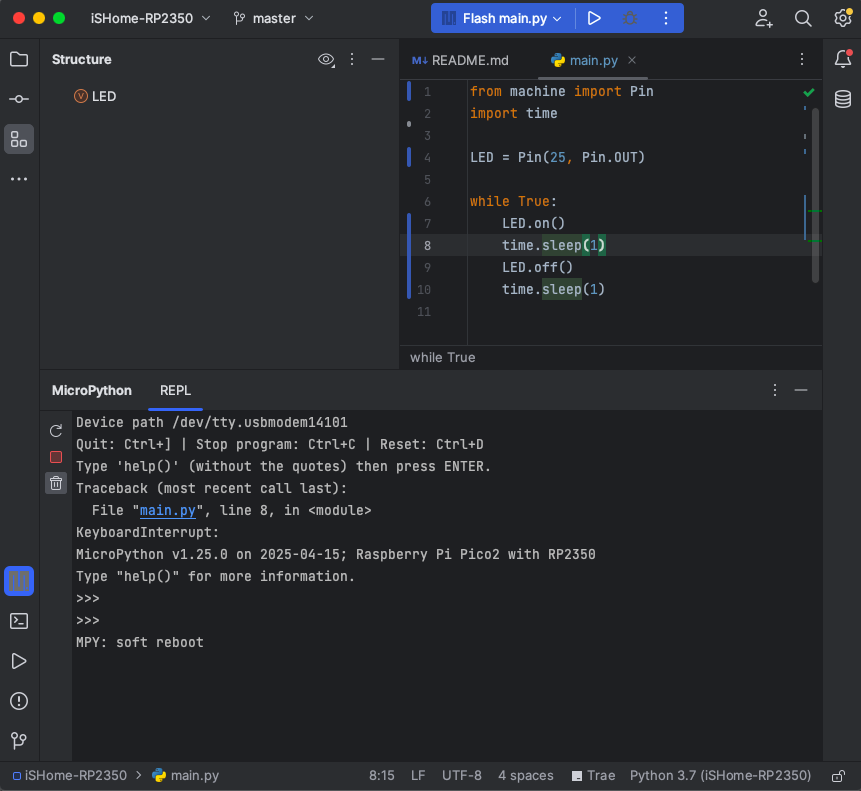

点灯测试
from machine import Pin
import time
LED = Pin(25, Pin.OUT)
while True:
LED.on()
time.sleep(1)
LED.off()
time.sleep(1)
跑分测试

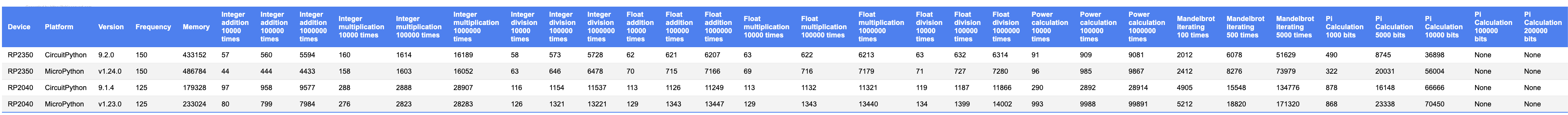

摘录了以下RP2350和RP2040的性能表格，但是实际我这边测试出来与给出有点出入，仅供参考，建议以C/C++进行基准测试。
测试涵盖：
- 基础运算性能（整数/浮点）
- 复杂算法处理（Mandelbrot集计算）
- 高精度计算（π值计算）
注: 时间单位ms, 越小则性能越好。
BenchMark:
'''
Simple benchmark for micropython and circuitpython.
Compare the performance of different MCUs by performing operations such as addition, multiplication, exponentiation, complex numbers, and pi.
'''
import sys
import gc
try:
from time import ticks_ms, ticks_diff
import machine
TEST_ENV = 'micropython'
def freq():
try:
f = machine.freq() // 1000000
except:
f = machine.freq()[0] // 1000000
return f
except:
from time import monotonic_ns
def ticks_ms():
return monotonic_ns() // 1000000
def ticks_diff(T2, T1):
return T2 - T1
try:
import board
TEST_ENV = 'circuitpython'
import microcontroller
def freq():
return microcontroller.cpu.frequency // 1000000
except:
TEST_ENV = 'OTHER'
try:
import psutil
def freq():
return psutil.cpu_freq().max
except:
def freq():
return 'unknow'
def memory():
try:
r = gc.mem_free() + gc.mem_alloc()
except:
try:
r = psutil.virtual_memory().total
except:
r = 'unkonw'
return r
PLATFORM = sys.platform
VERSION = sys.version
FREQ = freq()
MEMORY = memory()
def run_test(func, *param):
gc.collect()
try:
t1 = ticks_ms()
if param == None:
func()
else:
func(*param)
t2 = ticks_ms()
dt = ticks_diff(t2, t1)
print('Calculation time:', dt, 'ms\n')
return dt
except:
print('Error occurred during operation!')
def mandelbrot_test(p):
iter = p[0]
def in_set(c):
z = 0
for i in range(iter):
z = z * z + c
if abs(z) > 4:
return False
return True
r = ''
for v in range(31):
for u in range(81):
if in_set((u / 30 - 2) + (v / 15 - 1) * 1j):
r += ' '
else:
r += '#'
r += '\n'
if len(p) > 1 and p[1]:
print(r)
def pi_test(p):
iter = p[0]
extra = 8
one = 10 ** (iter + extra)
t, c, n, na, d, da = 3 * one, 3 * one, 1, 0, 0, 24
while t > 1:
n, na, d, da = n + na, na + 8, d + da, da + 32
t = t * n // d
c += t
return c // (10 ** extra)
def add_test(p):
for i in range(p[0]):
C = p[1] + p[2]
def mul_test(p):
for i in range(p[0]):
C = p[1] * p[2]
def div_test(p):
for i in range(p[0]):
C = p[1] / p[2]
def pow_test(p):
for i in range(p[0]):
C = p[1] ** p[2]
INT_ADD_TEST_LIST = ('Integer addition {} times', add_test, [12345678, 56781234], 10000, 100000, 1000000)
INT_MUL_TEST_LIST = ('Integer multiplication {} times', mul_test, [12345678, 56781234], 10000, 100000, 1000000)
INT_DIV_TEST_LIST = ('Integer division {} times', div_test, [99999991, 45481], 10000, 100000, 1000000)
FLOAT_ADD_TEST_LIST = ('Float addition {} times', add_test, [12345678.1234, 56781234.5678], 10000, 100000, 1000000)
FLOAT_MUL_TEST_LIST = (
'Float multiplication {} times', mul_test, [12345678.1234, 56781234.5678], 10000, 100000, 1000000)
FLOAT_DIV_TEST_LIST = ('Float division {} times', div_test, [99999991.2345, 45481.1357], 10000, 100000, 1000000)
POWER_TEST_LIST = ('Power calculation {} times', pow_test, [1234.5678, 2.3456], 10000, 100000, 1000000)
MAND_TEST_LIST = ('Mandelbrot iterating {} times', mandelbrot_test, [], 100, 500, 5000)
PI_TEST_LIST = ('Pi Calculation {} bits', pi_test, [], 1000, 5000, 10000, 100000, 200000)
TEST_LIST = (
INT_ADD_TEST_LIST, INT_MUL_TEST_LIST, INT_DIV_TEST_LIST,
FLOAT_ADD_TEST_LIST, FLOAT_MUL_TEST_LIST, FLOAT_DIV_TEST_LIST,
POWER_TEST_LIST,
MAND_TEST_LIST,
PI_TEST_LIST
)
tr = []
def run():
global tr
for TEST in TEST_LIST:
for item in TEST:
if type(item) == int:
print(TEST[0].format(item))
p = TEST[2].copy()
p.insert(0, item)
r = run_test(TEST[1], p)
tr.append([TEST[0].format(item), str(r)])
def print_result():
r1 = '| item | Platform | Version | Frequency | Memory |'
r2 = '| - | - | - | - | - |'
r3 = '| {} | {} | {} | {} | {} |'.format('result', PLATFORM, VERSION, FREQ, MEMORY)
for i in range(len(tr)):
r1 += ' {} |'.format(tr[i][0])
r2 += ' - |'
r3 += ' {} |'.format(tr[i][8])
print(r1)
print(r2)
print(r3)
###############################################################################
print('\n\n')
print('##############')
print('# Begin test #')
print('##############')
print('\nEnvironment:', TEST_ENV)
print('Platform:', PLATFORM)
print('Version:', VERSION)
print('Frequency:', FREQ)
print('Memory:', MEMORY)
print()
run()
print('\nTest finished.')
print('==============')
print_result()

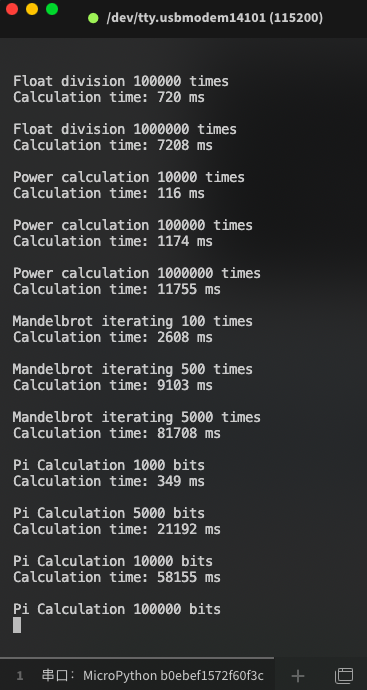

串口运行结果日志:
Calculation time: 4259 ms
Integer multiplication 10000 times
Calculation time: 161 ms
Integer multiplication 100000 times
Calculation time: 1628 ms
Integer multiplication 1000000 times
Calculation time: 16284 ms
Integer division 10000 times
Calculation time: 62 ms
Integer division 100000 times
Calculation time: 639 ms
Integer division 1000000 times
Calculation time: 6400 ms
Float addition 10000 times
Calculation time: 69 ms
Float addition 100000 times
Calculation time: 708 ms
Float addition 1000000 times
Calculation time: 7094 ms
Float multiplication 10000 times
Calculation time: 70 ms
Float multiplication 100000 times
Calculation time: 710 ms
Float multiplication 1000000 times
Calculation time: 7108 ms
Float division 10000 times
Calculation time: 71 ms
Float division 100000 times
Calculation time: 720 ms
Float division 1000000 times
Calculation time: 7208 ms
Power calculation 10000 times
Calculation time: 116 ms
Power calculation 100000 times
Calculation time: 1174 ms
Power calculation 1000000 times
Calculation time: 11755 ms
Mandelbrot iterating 100 times
Calculation time: 2608 ms
Mandelbrot iterating 500 times
Calculation time: 9103 ms
Mandelbrot iterating 5000 times
Calculation time: 81708 ms
Pi Calculation 1000 bits
Calculation time: 349 ms
Pi Calculation 5000 bits
Calculation time: 21192 ms
Pi Calculation 10000 bits
Calculation time: 58155 ms
Pi Calculation 100000 bits跑分结论大致如下：
- CircuitPython(适用于大多数场景): 浮点运算速度快、内存占用低，运行复杂算法（如分形、高精度计算），推荐科学计算、图形渲染等场景。
- MicroPython: 整数运算速度快（如嵌入式控制、传感器数据处理），短任务响应更敏感（如快速初始化）。
尾言
通过本次完整的开发体验，Beetle-RP2350展现出了优异的性能表现和开发便利性。其双核架构在保持低功耗的同时，提供了显著的性能提升。MicroPython生态的成熟度也使得快速原型开发成为可能。对于嵌入式开发者而言，这款开发板在物联网终端、智能控制等领域都具有广阔的应用前景。
后续计划：将进行环境监测系统实验，欢迎关注项目更新。
题外话
- 本文同步更新DFRobot社区: https://mc.dfrobot.com.cn/thread-325015-1-1.html#pid609120
